Description
The Altis Sigma is an innovative electric dirt bike featuring a powerful 98-volt, 35-amp hour long-range battery that is revolutionizing the e-moto industry. Available at Ridez Electric Bike Shop, the Altis Sigma comes in two dynamic models: the standard Altis Sigma and the Sigma MX. The Sigma MX is equipped with a 16-inch rear wheel, while the standard Sigma boasts a 19-inch rear wheel. Both models also feature a 19-inch front wheel. This cutting-edge bike is powered by a robust 27 HP (20 kW) peak Hairpin motor, delivering an impressive torque of 443 lb-ft (601 Nm), perfect for thrilling off-road adventures.
Constructed with a lightweight aluminum alloy frame, it includes advanced adjustable air-spring suspension and a durable Samsung 50S battery pack, combining exceptional performance and versatility. Experience the future of electric riding with enhanced features like a 3.5-inch TFT display for unprecedented tuning options, five levels of regenerative braking, and heavy-duty CST off-road tires. The Altis Sigma has a factory-set top speed of 20 mph, with the potential for an unlocked higher top speed.
Quantities are extremely limited and selling quickly. Order soon if you want to be among the first to own the Altis Sigma.

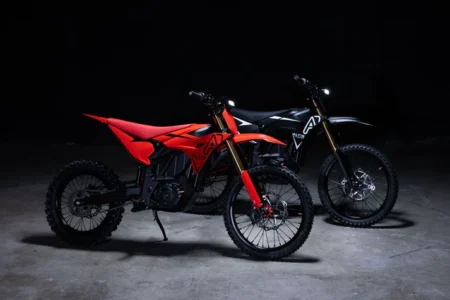

ALTIS SIGMA MX vs. ALTIS SIGMA
The Altis Sigma MX has a 16″ rear wheel (often preferred in off-road settings), where as the Altis Sigma has a 19″ rear wheel. Otherwise, the two bikes are identical.
ALTIS SIGMA & ALTIS SIGMA MX SPECIFICATIONS
Design & Performance Upgrades:
Altis decided to make some upgrades to the final production bikes. Here’s a list of some of those changes!
1) 22kw Motor output, increased from 20kw
2) Upgraded front fork springs
3) 3-inch Handlebar riser bar
4) New chain guard included
5) New rotor bash guard included
ALTIS SIGMA PRODUCT HIGHLIGHTS
- Battery: 97.2V 35Ah (3402Wh) Samsung 50S battery Cells (Greenway Battery Pack)
- Motor: 22 kW peak Hairpin Motor (Automotive standard)
Torque: 601 Nm (44T Sprocket) - Wheels: Laced wheels: Fr 19″ / Rr 16″ (Straight-pull)
- Suspension: Adjustable off-road air-spring suspension

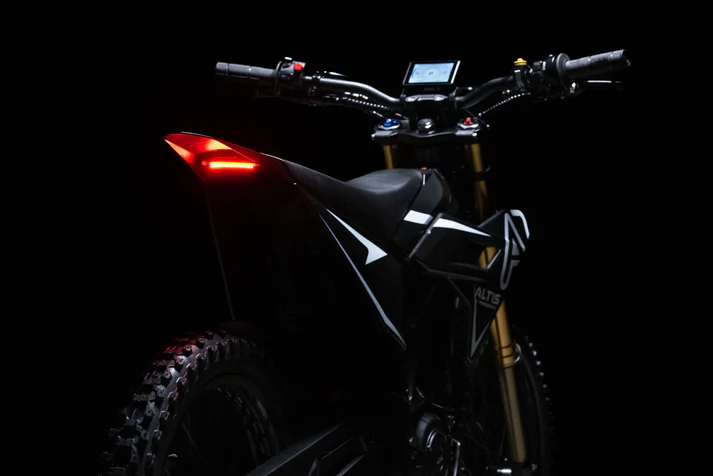

- Display: 3.5″ TFT display with NFC feature
- Tuning: Adjust throttle curves, aggressiveness, and more through the display
- Regenerative Braking: 5 levels of regenerative braking
- Lights: Headlight & Taillight (w/brake light) switch, has high beam and low beam
- Brakes: Heavy duty 4 piston DOT disc brakes
- Top Speed: 20 Mph (From the factory. See below for unlocked top speed)
- Tires:
- SIGMA MX: CST off-road tires (specific size)
- SIGMA: CST off-road tires (potentially different tread pattern)
ALTIS SIGMA CHASSIS SPECIFICATIONS
- Weight (with battery): 185 Lb (84 kg)
- Wheelbase: 51 Inches (1285 mm)
- Front Brake Disc Diameter: 260 mm
- Rear Brake Disc Diameter: 220 mm
- Chain: 428H
- Frame Design: Aluminum alloy forging
- Ground Clearance: 12 Inches (300 mm)
- Seat Height: 33 Inches (840 mm)
- Steering Head Angle: 26°
- Suspension Travel (Front): 8 Inches (200 mm)
- Suspension Travel (Rear): 3.3 Inches (85 mm) with linkage
- Wheels: Spoked wheels with aluminum rims
- Max Load: 300 lbs
POWERTRAIN SPECIFICATIONS FOR ALTIS SIGMA
- Rated Output: 8 kW
- Controller: 450-Phase Amp Controller
- Torque: 75 Nm
- Battery: Lithium-lon ALTIS PowerPack
- Battery Capacity: 35 Ah
- Charging Input: AC110V/220V 12.5A
- Charging Time 100%: 180 min.
- Charging Time 80%: 120 min.
- Cooling: Air cooled
- Energy Content: 3.402 kWh
- Electric Motor: 98V – Hairpin motor
- Max Power: 20+ kW
- Gearbox: 600 mile first service, 5000mile/5 year 2nd service
Which Sigma is Right for You?
• Sigma (19/19 Wheels) – Ideal for riders who want versatility. Whether you’re hitting trails, gravel roads, or occasional pavement, this setup provides a balanced mix of stability, speed, and off-road capability. If you’re looking for higher top speeds while maintaining off-road performance, the standard Sigma is the way to go.
• Sigma MX (19/16 Wheels) – Built for the off-road purist. If you spend most of your time on motocross tracks, single-track trails, or technical terrain, the smaller rear wheel enhances agility, acceleration, and handling. The focus here is on control and responsiveness rather than outright top speed, making it perfect for aggressive off-road riding.
