Description

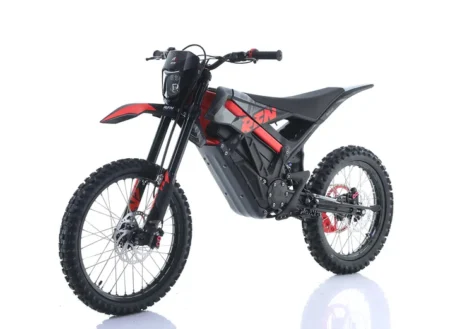

Introducing the Apollo RFN Ares Rally DLX Electric Dirt Bike – This is Apollo’s answer to the electric dirt bike. NOW WITH A HEADLIGHT! Top speed 20mph, range of up to 100 miles, and a 12.5Kw motor, the RFN Ares is a real dirt bike with a powerful electric drivetrain. This is the 2023 model with the rectangle display. this has the Headlight with larger battery.
- CITY RANGE : 100MILES
- PEAK POWER: 12.5KW
- CURB WEIGHT: 154LBS
- BATTERY: 74V 43AH
- SHOCK ABSORBERS: 200MM
- TOP SPEED: 20mph
POWER
11-58T Max Torque 305 N·m (Max Torque of rear wheel: 305 / N-m
Battery
43ah 74V, LG Premium 21700 lithium cells, removable, can be charged on a bike or separately.
Brakes
Front and Rear 4-piston hydraulic disc, 210mm
Charging
2-3h with Quick Charge Function
Controller
Sine wave, Best-in-class power density, and state-of-the-art motor control algorithms.
Electric motor
Air-cooled Permanent Magnet Synchronous Motor, energy regeneration function, Direct drive, 420
Drivetrain
Electric motor: Air cooled Permanent Magnet Synchronous Motor, energy regeneration function, Direct drive, 420 chains with DX
Sprocket: 13T-58T
Rated power: 5 kW
Peak power: 12.5 kW**
Max Torque of motor: 58 N·m
Max Torque of rear wheel: 305 N·m
Dimensions
Fork angle: 340mm – 13.39”
Offset: 15mm in triple clamps, 45mm in forks.
Seat height: 860mm – 33.86”
Trail: 111mm – 4.37”
Wheelbase: 1330mm – 52.36”
Fenders & Bodywork
Material: PP/ABS plastic
Frame
Build: 6082 aluminum extruded, forged, CNC machined, and steel frame.
Front Suspension
Upside Down, 200mm travel, Fully adjustable
Handlebar
6061 aluminum, 760mm length
Rear Suspension
Mono-Shock, 74mm travel, adjustable
Regulatory
Certificate: CE
Ride modes
Mode 1: Tortoise mode: The ultimate mode of energy conservation exploration. Limited to 25 km/h with 3.5 hours battery range.
Mode 2: Rabbit mode: Enduro or active trail riding. 1-2 h riding time.
Mode 3: Rocket mode: Track and race mode, maximal torque and speed, riding time up to 60 Sec.
Mode 4: Reverse mode: Limited to 9 km/h.
Speed & Range
Range: 160 Km (Test data Load: 75 Kg, 20 Km/h uniform speed, ambient temperature: 25 °C, flat pavement, standard tires, standard tire pressure)
Weight
N.W of Battery: 15 kg
N.W of the whole bike: 68 kg
Max load: 120kg
Wheels & Tires
Hubs: Forged and CNC aluminum RFN hubs with 20mm axle.
Rims: F 19″/ R 18″ (Motorcycle standard) re-enforced, triple chamber, 7050 aluminum.
Tires: F: CST CM721 70/100-19 off-road, R: CST CM722 90/100-18 off-road
