Description

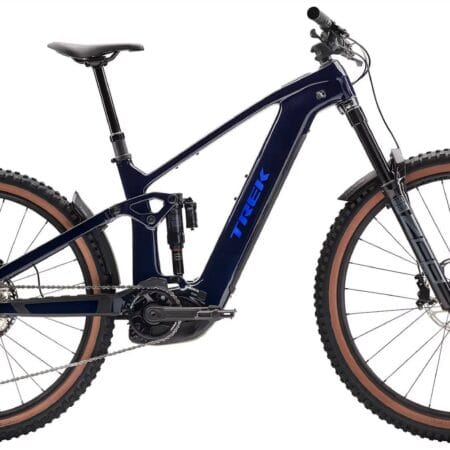

2026 Trek Rail+ 9.7 Gen 5 800Wh Electric Full Suspension Carbon MTB In Navy Smoke
Experience the next level of adventure with Trek’s Rail+ 9.7 Gen 5, a premium carbon enduro e-MTB built to heighten your exploration. With a robust 160mm front and rear travel, this e-bike effortlessly devours every rugged trail while its advanced Bosch Performance CX drive system makes every steep climb and swift lap seem like a walk in the park.
An adventure bicycle par excellence, the Rail+ features adjustable geometry allowing you to custom-fit your bike based on your path of choice, backed by a vast battery reserve ensuring you have enough juice for every exciting journey. Add to that a Shimano drivetrain for reliable, swift gear changes and what you get is an e-MTB that’s simply peerless at every count.
Features include an OCLV Mountain Carbon frame reinforced with a Bosch Performance CX system (85Nm, 250W) and a powerful 800Wh RIB 2.0 removable integrated battery. Clearly designed for optimum performance, the Rail+ features a 160mm RockShox Domain RC fork with DebonAir spring, Motion Control damper, and lockout, and a RockShox Deluxe Select+ rear shock. All this is captured in a set of Tubeless Ready Bontrager Line Comp 30 wheels, a Shimano XT and SLX blend drivetrain, 4-piston Shimano hydraulic disc brakes, and an internally-routed dropper post.
Epic rides delivered with more travel and power.
A potent Bosch Performance CX system that powers up steep climbs and ensures a smooth descent.
Tweakable geometry and suspension leverage rate that’s designed to accommodate a variety of riding styles.
An extended 800Wh RIB 2.0 battery providing massive support for longer rides; convenient for travel and storage.
A Bosch System Controller that provides an integrated overview of the assist mode and battery levels.
An Active Braking Pivot that offers more control and confidence during rides.
Take your adventures to the next level with the Rail+ 9.7 – the ultimate e-MTB designed for those with an insatiable desire for adventure.
Key Features Of The Trek Rail+ 9.7 Gen 5
Motor: Bosch Performance Line CX, Gen 5, 15.5mph / 25km/h max assist
Battery: Bosch PowerTube 800Wh, smart system, Removable Integrated Battery (RIB 2.0)
Display: Bosch System Controller BRC3100, smart system
Frame: OCLV Mountain Carbon main frame, tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9mm seat tube, ABP, UDH Boost148, 12mm thru axle, 160mm travel
Fork: RockShox ZEB Select, DebonAir spring, Charger RC damper, tapered steerer, 44mm offset, Boost110, Maxle Stealth, 160mm travel
Rear shock: RockShox Super Deluxe Select+ RT, 205mm x 65mm
Rear derailleur: Shimano XT M8100, long cage
Cassette: Shimano SLX M7100, 10-51T, 12-speed
Brakes: SRAM DB 8 4-piston hydraulic disc; SRAM CentreLine, 6-bolt, round-edge, 200mm rotors
Rims: Bontrager Line Comp 30, Tubeless Ready
Tyres: Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 2.50″
What’s Included
Manual, keys and charger included
Complimentary pedals supplied
Built, configured and tested by an approved technician
Full technical handover and ongoing support if required
We offer a free follow up service at 175 miles
